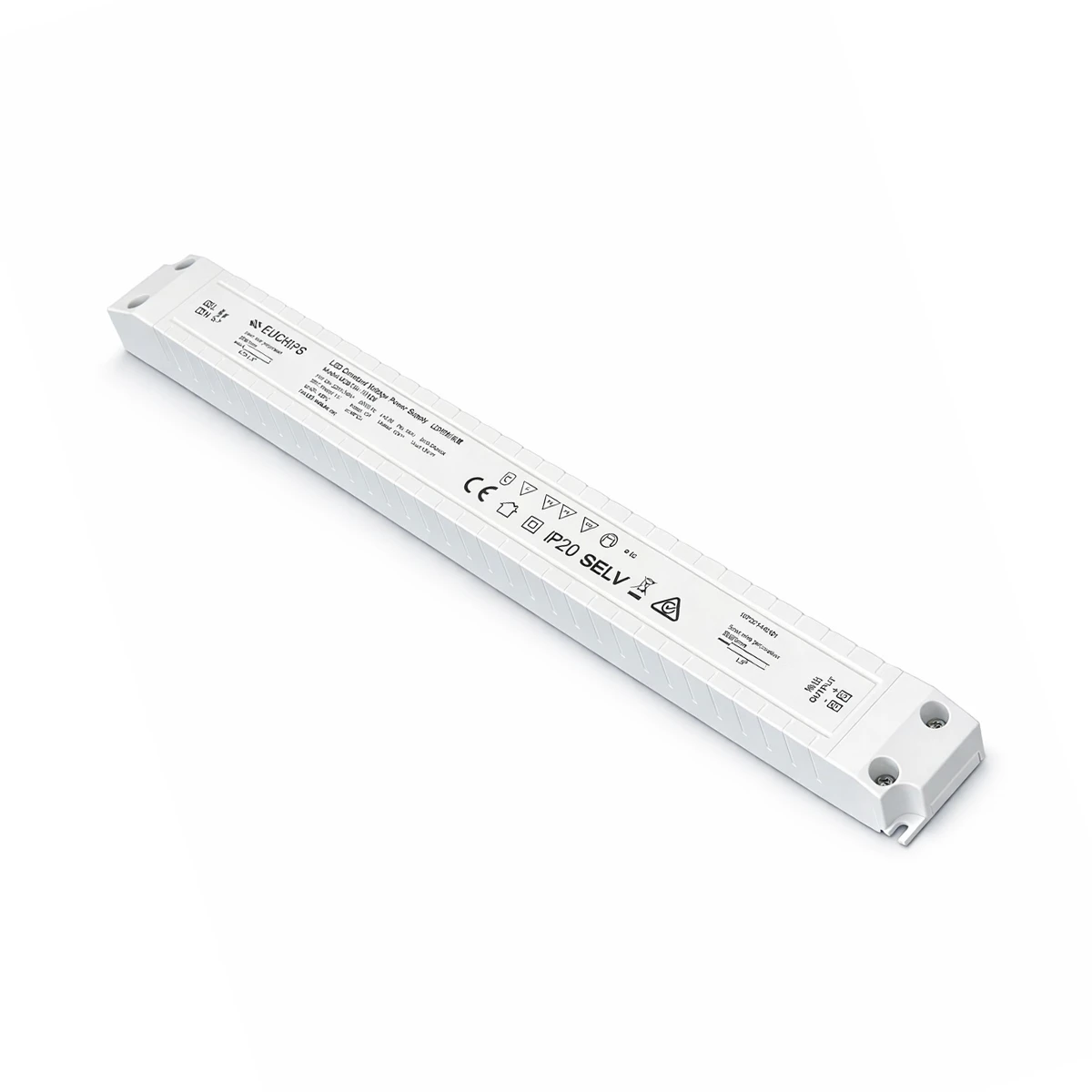

The Euchips Slimline Indoor Power Supply 132W is a professional-grade 12V constant voltage LED driver designed for indoor signage, architectural lighting and LED strip applications. Featuring a slimline aluminium-style form factor, high electrical efficiency, and comprehensive protection circuitry, this power supply delivers stable, long-term performance in commercial and trade environments.
Engineered by Euchips, this unit is ideal for signmakers, electricians, and lighting installers who require a compact, dependable indoor LED power solution with excellent thermal performance and a long service life.
Key Features
-
132W constant voltage output (12V DC, 11A)
-
Ultra-slim design for tight installations
-
High efficiency >90% at full load
-
Power factor ≥0.98 at 230V
-
Flicker-free, stable LED output
-
Built-in overload, over-voltage and short-circuit protection
-
IP20 rated for indoor use
-
5-year manufacturer warranty
| Specification | Details |
|---|---|
| Model | UCS150-1H12V |
| Output Type | Constant Voltage |
| Output Voltage | 12V DC |
| Output Power | 132W |
| Output Current | 11A |
| Input Voltage | 220–240V AC |
| Input Frequency | 50 / 60Hz |
| Efficiency | >90% @ 230V (full load) |
| Power Factor | ≥0.98 @ 230V (full load) |
| Max Input Current | 0.8A @ 220V |
| Inrush Current | <60A @ 230V |
| Standby Power | <1W |
| Voltage Tolerance | ±3% |
| Channels | 1 |
| Turn-On Delay Time | <0.5 seconds @ 230V |
| IP Rating | IP20 (Indoor use) |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +85°C (20–90% RH) |
| Lifetime | 50,000 hours @ 40°C |
| Protection | Short circuit, overload, over-voltage (auto recovery) |
| Surge Protection | L–N 2.5kV |
| Withstand Voltage | Input–Output: 3000VAC / 1 min / 5mA |
| Certifications | CE, RoHS |
| Warranty | 5 Years |
| Dimensions (L × W × H) | 323 × 30.5 × 22 mm |
Ideal Applications
The Slimline Indoor Power Supply 132W is suited to a wide range of indoor LED signage and lighting applications, including:
-
LED strip lighting
-
Lightboxes and illuminated signs
-
Wall washer lighting
-
LED tubes
-
Retail, POS and exhibition displays
-
Architectural and feature lighting
Designed for Australian 220–240V mains power, this driver integrates seamlessly into commercial indoor installations.
