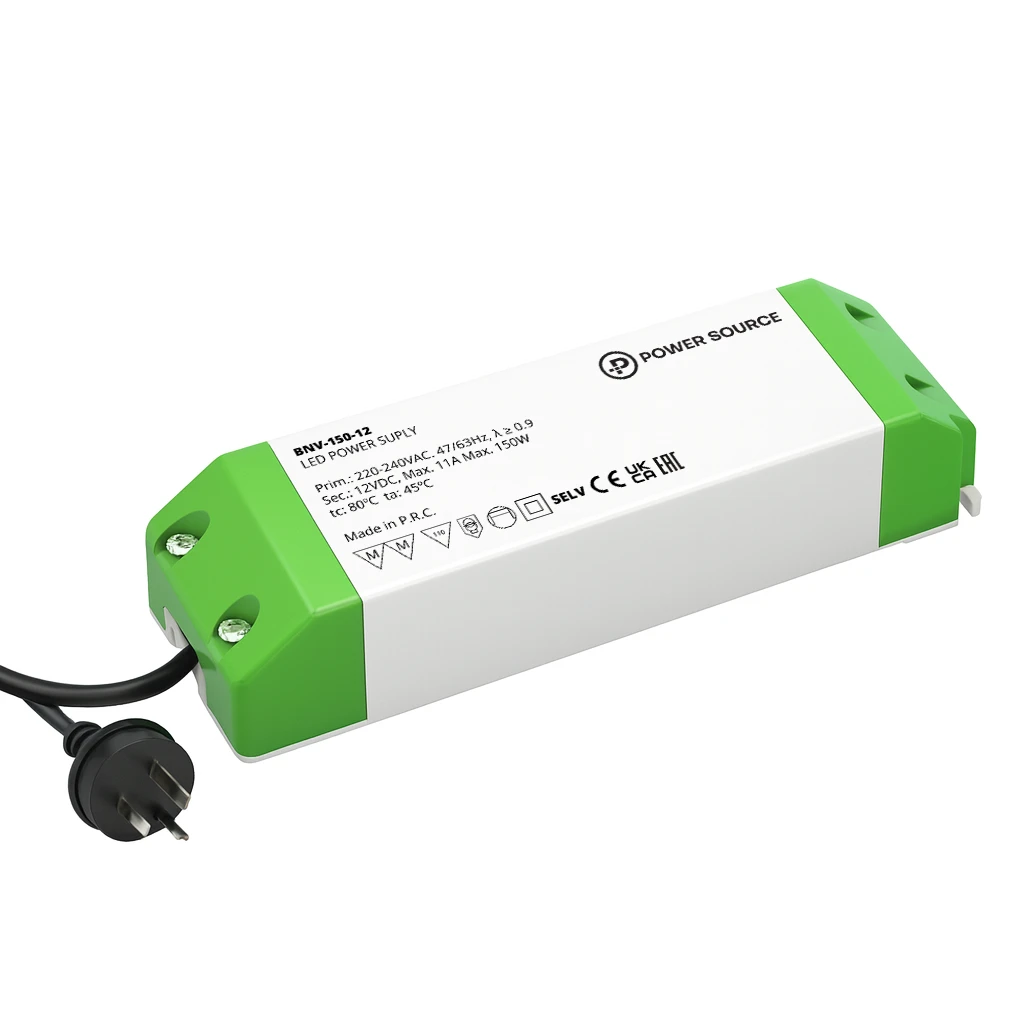

150W Indoor LED Transformer

For bigger indoor lightboxes, long strip runs and higher power LED signage, the BNV-150-12 gives you serious output in a compact, installer friendly package. This non dimmable 150 W, 12 V constant voltage driver is tailored for Australian 220 to 240 V mains and indoor applications that demand reliability.

It is a great fit for larger retail, commercial and hospitality installations in capital cities and regional areas around Australia.

Key features

• 150 W 12 V DC constant voltage LED driver

• AC input range 220 to 240 V AC, 47 to 63 Hz

• ERAC, CE and UKCA-certified

• Power factor around 0.95 at 230 V AC full load

• High full load efficiency – up to 90 % on the 12 V model

• Built in protections: short circuit, overload, over voltage and over temperature

• Class II, double insulated power supply

• IP20 plastic case with free air convection cooling

• Factory fitted flex and AU plug for quick installation

• 3 year warranty for use in Australian projects

Technical Specifications

Typical applications

• Large indoor LED lightboxes and menu boards

• Long runs of 12 V LED strip lighting in shopping centres and commercial projects

• High output indoor illuminated signage and feature walls

• Moving sign and display systems that need robust 12 V constant voltage power

Installation notes

• Connect LEDs via the screw terminals under the removable cover, matching polarity (LED+ and LED–).

• Incorrect wiring may damage the driver and LEDs and is not covered by warranty.

• Allow for adequate ventilation and follow the derating curve if used in higher ambient temperatures.

• Installation should be completed by a qualified electrician.

Why installers choose the BNV-150-12

• High output in one unit – 150 W at 12 V reduces the number of drivers needed on big jobs.

• Efficient and power factor friendly, helping to limit wasted power and heat.

• Comprehensive protection for both driver and LED load during fault conditions.

• Compact, installer ready design with AU plug and clearly marked terminals.

• Australian compliant, meeting AS/NZS 61347-1 and EMC requirements.

Eurotech LED Box module calculator

Width:  cm
Height: cm

Depth:  cm

Calculate

Side lit Modules
1.5w
3w
total wattage
30w transformer
60w transformer
150w transformer

1.2w Modules
1.2w modules
total wattage
30w transformer
60w transformer
150w transformer

.36w Modules
.36w modules
total wattage
30w transformer
60w transformer
150w transformer

.72w Modules
.72w modules
total wattage
30w transformer
60w transformer
150w transformer

TIPS

1. We recommend the transformer power to be 20% higher than linked LED watt value
2. Note, the colour of the print can effect final results
3. Wires between modules should never be taut
4. We suggest to also use glue along with the modules double sided tape
