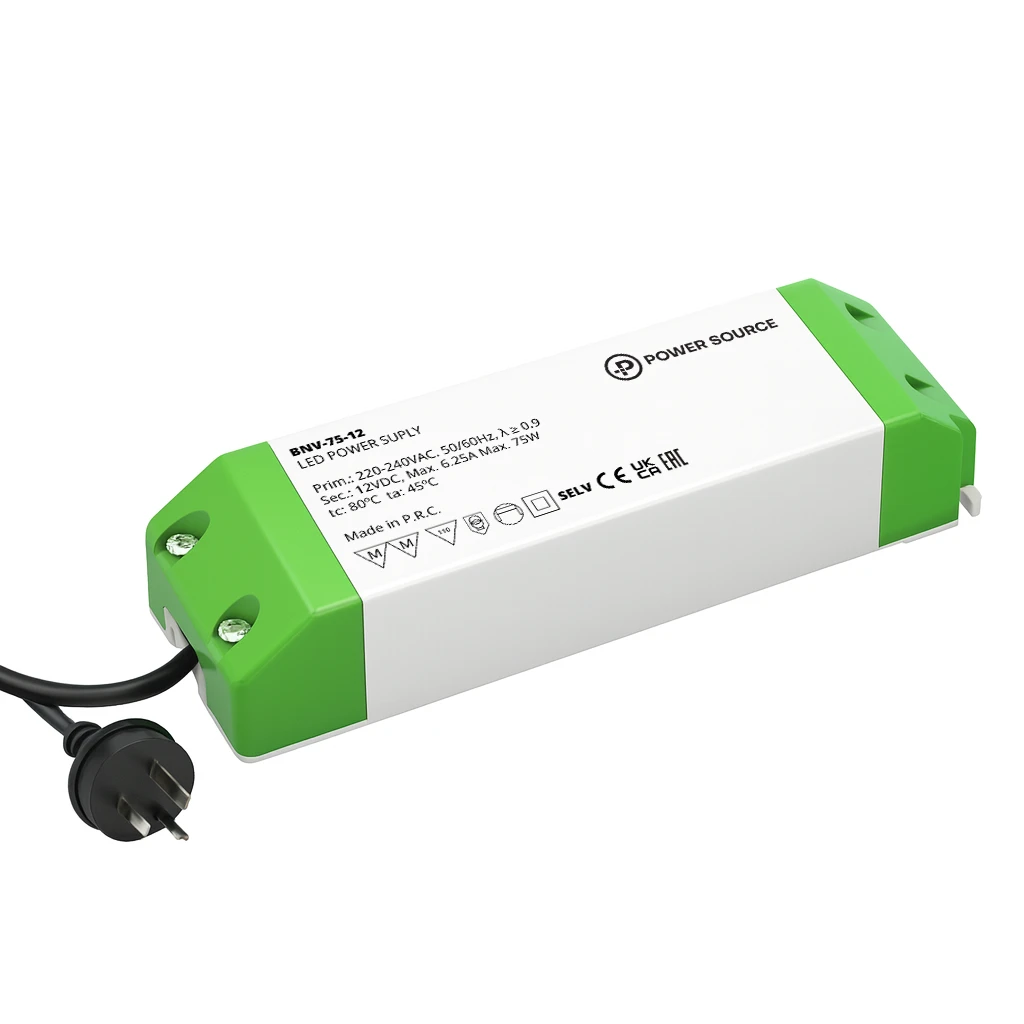

Name: 75W Indoor LED Transformer
SKU: 115732

Description
Price and Availability
Downloads & Specs
Reviews

Description

Step up the power for larger indoor signage and lighting runs with the BNV-75-12. This non dimmable 75 W, 12 V constant voltage LED driver is designed for Australian mains power and indoor installations where reliability and safety are key.

Ideal for sign shops, shopfitters and electrical contractors working on retail, commercial and hospitality projects in Perth, Sydney, Melbourne, Brisbane and right across regional Australia.

Key features

75 W 12 V DC constant voltage output
AC input range 220 to 240 V AC for Australian mains power
ERAC, CE and UKCA certification
High power factor, PF around 0.9 at 240 V AC, 50 Hz full load
High efficiency driver – up to 89% at full load
Built in protections: short circuit, overload, over voltage and over temperature
Class II, double insulated LED power supply
IP20 indoor rated plastic housing, cooled by free air convection
Factory fitted flex and Australian plug for fast connection
3-year warranty for peace of mind on Australian projects

Technical Specifications

Parameter	BNV-75-12
DC output voltage	12 V DC constant voltage
Voltage tolerance	±5 %
Rated current	6.25 A
Rated power	75 W
Recommended loading range	10 to 100 % of rated load
Input voltage range	220 to 240 V AC
Input frequency	50 to 60 Hz
Power factor	PF approx. 0.9 at 240 V AC, 50 Hz
Full load efficiency (typical)	Approx. 89 %
AC input current (max.)	< 0.40 A
Leakage current	≤ 0.7 mA
Inrush current	Cold start, < 40 A at 230 V AC
Short circuit protection	Hiccup mode, auto reset after fault correction
Overload protection	Hiccup mode, auto reset, 1.1 to 1.6 × rated load
Over voltage protection	Shuts down at approx. 1.5 × rated output voltage, cycle power to recover
Over temperature protection	IC detects case temperature around 115 °C
Working temperature	−20 to +45 °C (refer to derating curve)
Storage humidity	10 to 90 % RH
Safety standard	AS/NZS 61347.2.13
Withstand voltage	Input to output: 3.75 kVAC / 60 s
Isolation resistance	≥ 10 MΩ at 500 V DC, 25 °C
EMC compliance	EN IEC 61000-3-2, EN55015
Enclosure rating	IP20, indoor use only
Dimensions (L × W × H)	Approx. 170 × 44.5 × 28.2 mm
Net weight	Approx. 0.231 kg

Installation notes

Connect LED load to the driver via the screw terminals under the removable cover, observing polarity (LED+ and LED–).
Incorrect wiring can damage the power supply and LEDs and is not covered by warranty.
Install with adequate ventilation for heat dissipation and follow the derating curve for higher ambient temperatures.
Installation should be carried out by a qualified electrician.

Typical applications

Use the 75 W 12 V indoor transformer for:

Mid-sized indoor LED lightboxes and menu boards
Longer LED strip lighting runs in retail and commercial fitouts
Indoor illuminated signage, logo boxes and cabinets
Moving sign and display systems that require a 12 V constant voltage driver

Why installers choose the BNV-75-12

More power in one driver – 75 W output lets you run longer LED strings from a single supply.
Easy setup with factory fitted AU plug for quick testing and commissioning.
High efficiency and strong power factor help reduce wasted energy and heat.
Built in protections help safeguard both driver and LEDs in fault conditions.
Compliant for Australian use with AS/NZS 61347.2.13 and relevant EMC standards
