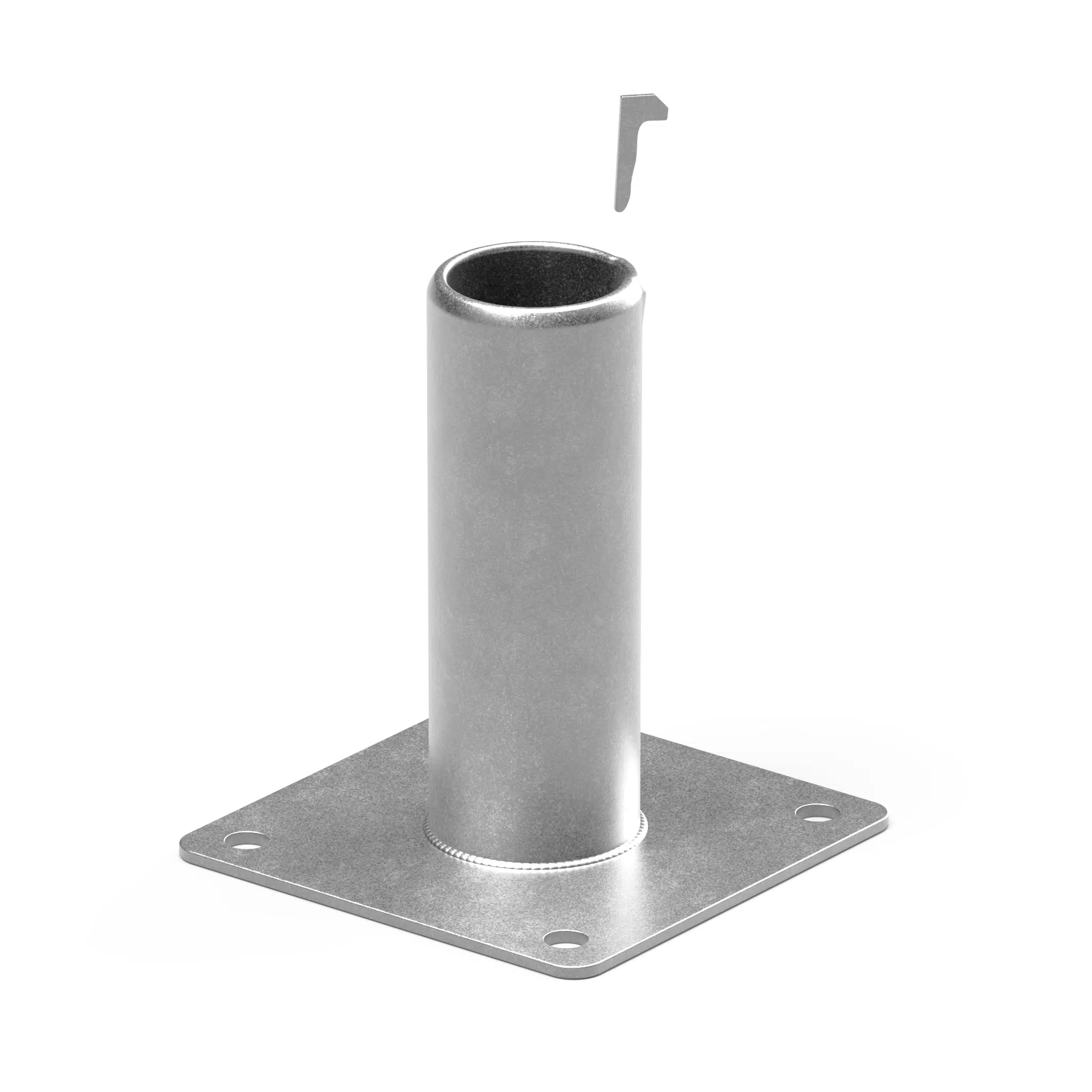

Surface Mount Sign Post Sleeve

Engineered for strength and durability, the Galvanised Pole Sleeve Mount provides a secure and easy way to install sign posts on hard surfaces. Manufactured from heavy-duty galvanised steel for superior corrosion resistance, this sleeve mount ensures long-term stability and resistance to the elements.

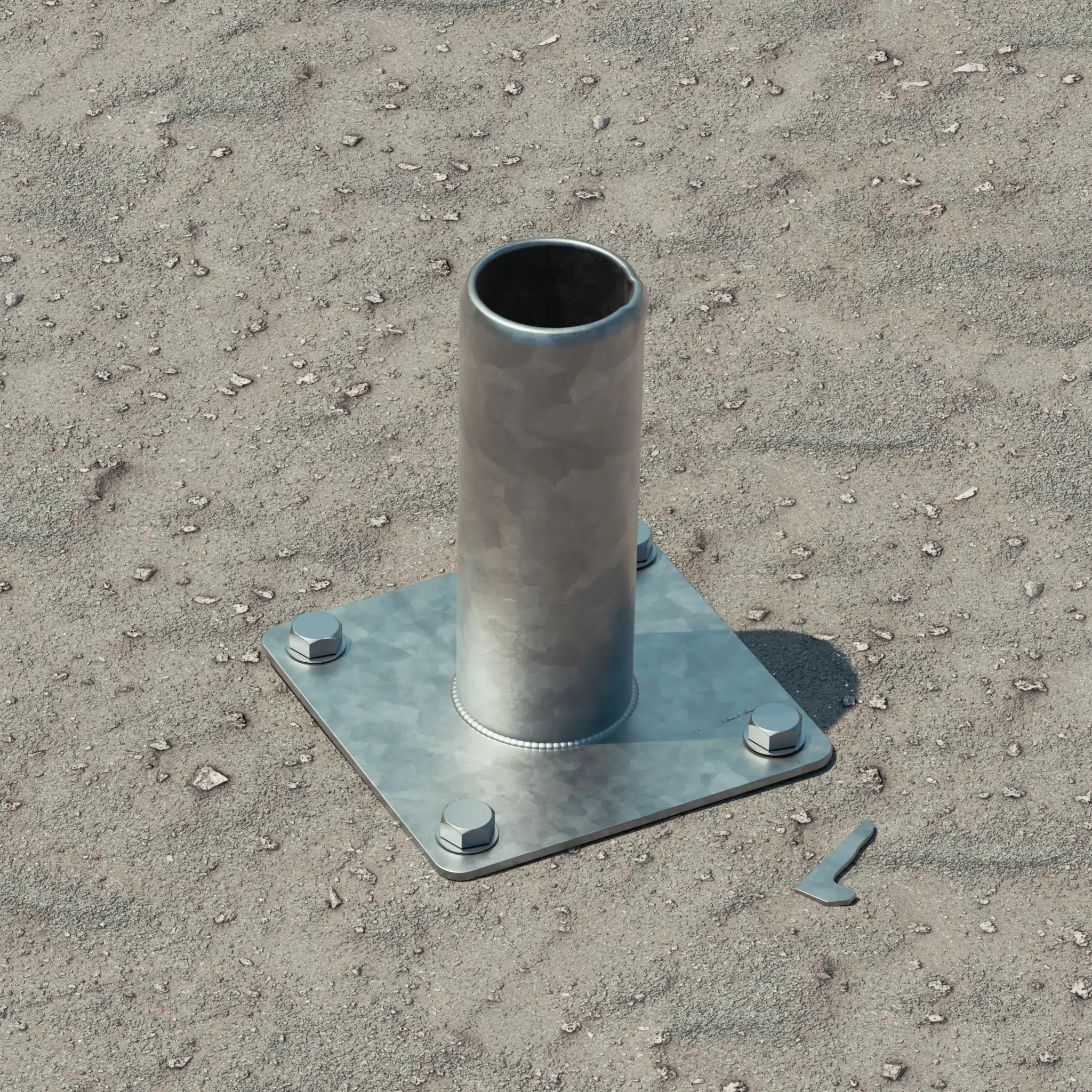

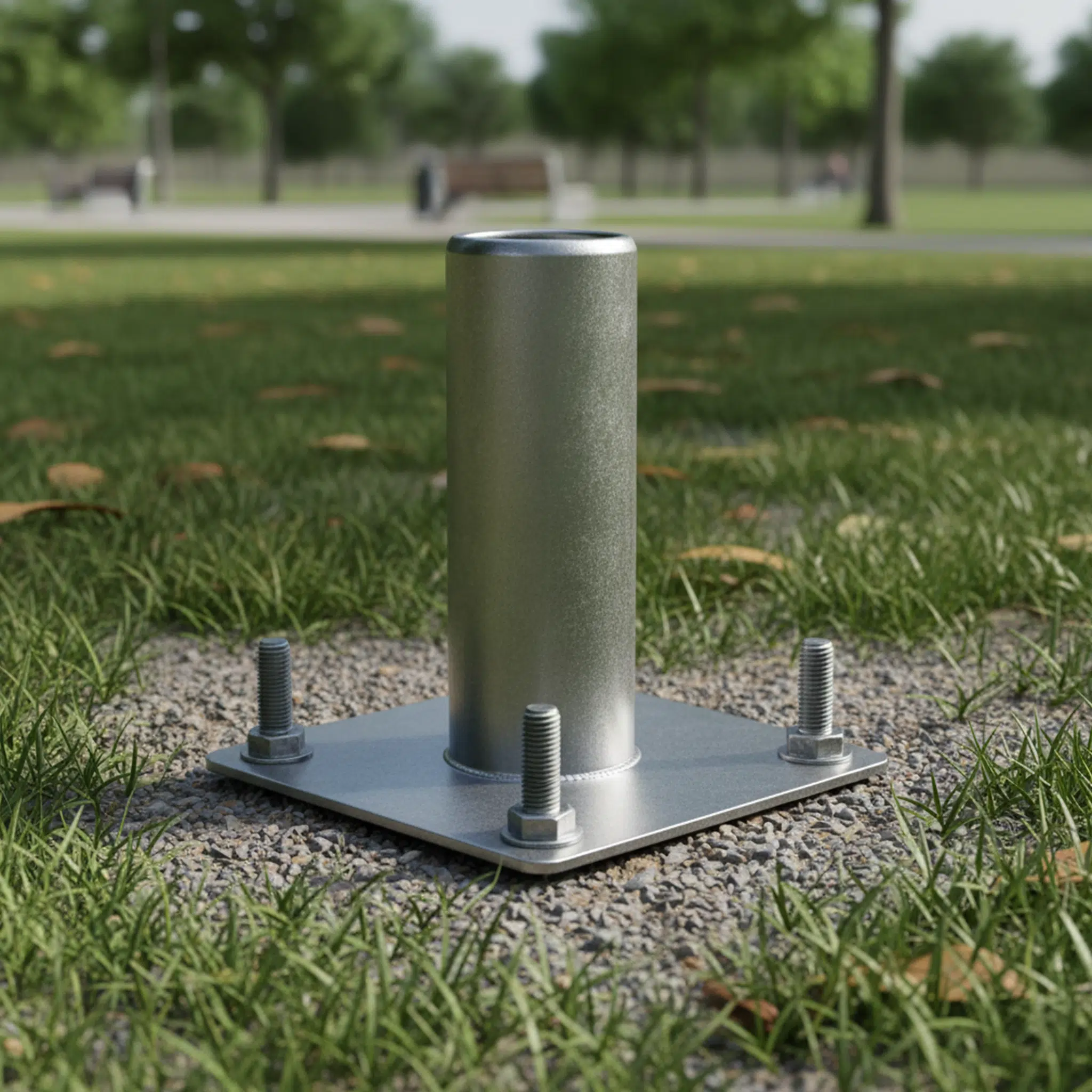

Featuring a 60 mm outside diameter, it accommodates standard sign posts and comes with a lock pin for added security. The surface-mount base (150 mm × 150 mm) includes four pre-drilled holes suitable for M10 bolts, allowing quick, stable installation on concrete, asphalt, or other solid bases.

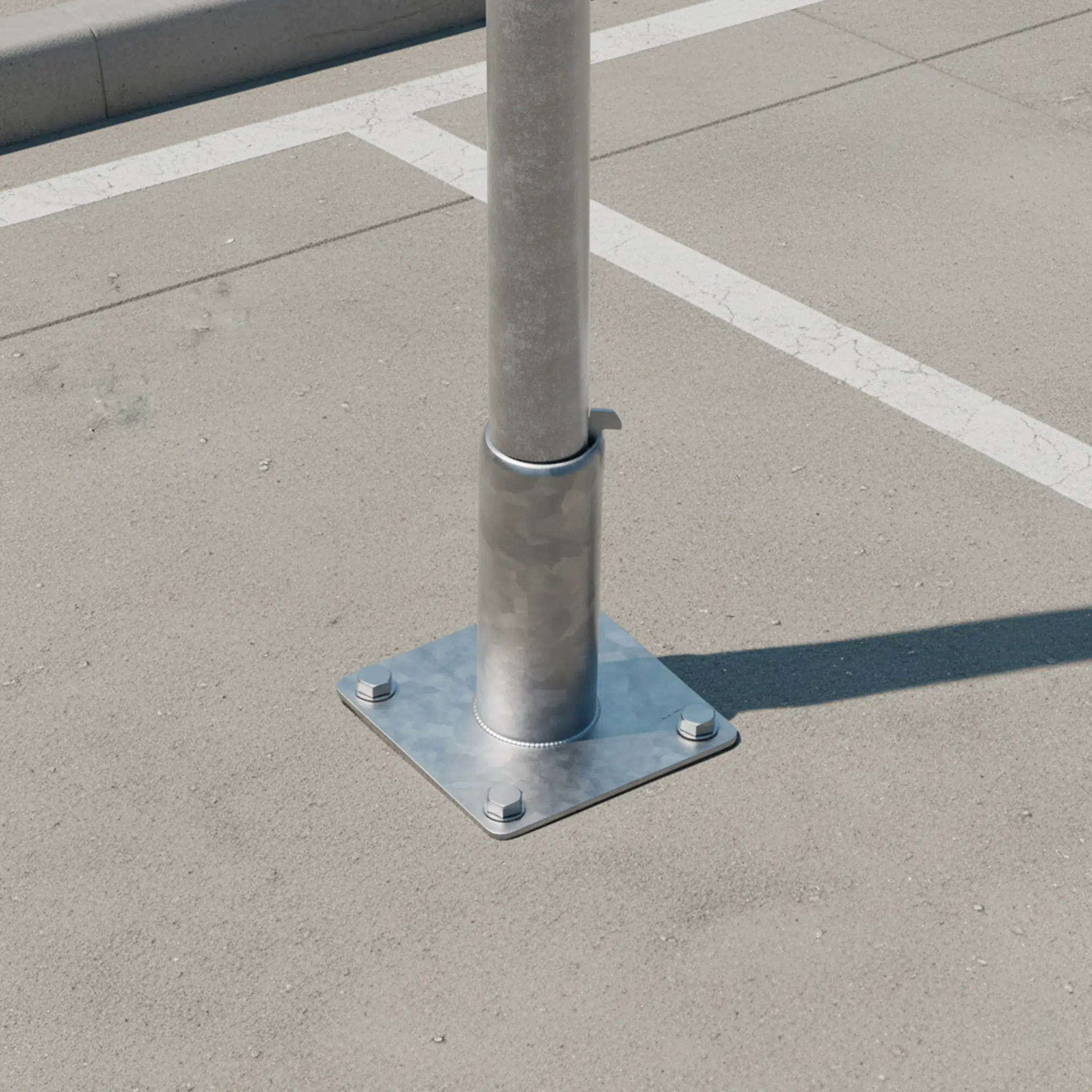

Perfect for traffic, construction, and property signage applications, this pole sleeve mount delivers reliability where it matters most.

Technical Details

• Material: Galvanised steel

• Sleeve height: 188 mm

• Base size: 150 mm × 150 mm

• Bolt suitability: M10

• Outside diameter: 60 mm

• Lock pin included

• Corrosion-resistant hot-dip galvanised finish

• Ideal for permanent or semi-permanent sign post mounting
