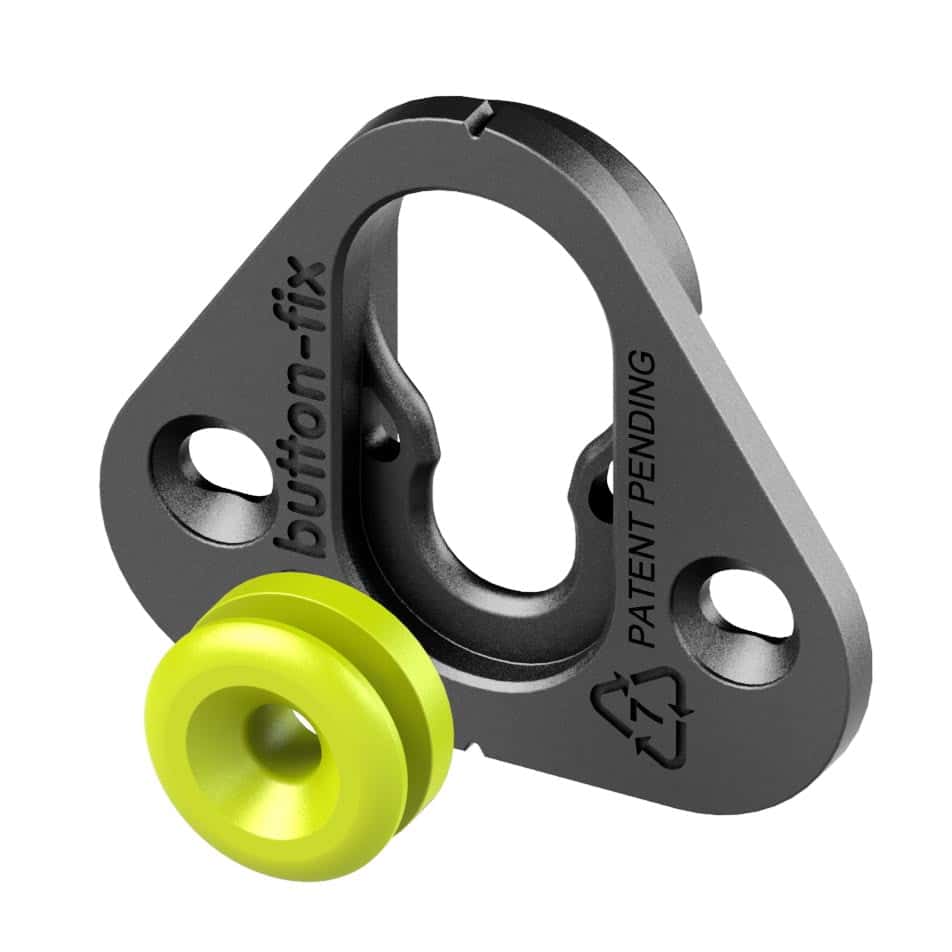

Type 1, Non-Bonded Button-Fix + Button – CSK w/screw 100pcs

Our robust and reliable original fastener

Connects parallel panels where the emphasis is on strength. Highly versatile, it can be surface-mounted or semi-rebated into the panel, orientated for vertical or sideways assembly.

Using Type 1 Non-Bonded Button-fix

When a panel fitting with proven strength is required, the Type 1 Button-fix is the one to use.

Typical uses include:

• Wall & ceiling panels
• Acoustic panels
• Mirror panels
• Shelf units & shop displays
• Upholstered panels & banquette seating

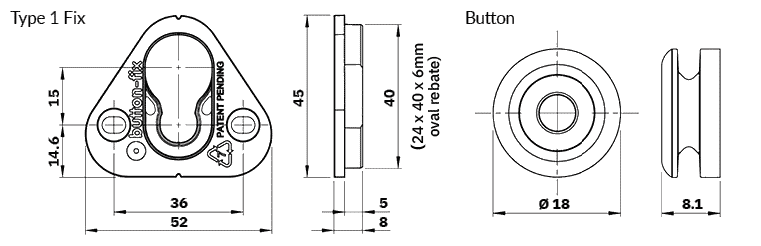

Specifications:

• When surface-mounted, panel gap = 8mm
• When rebated, panel gap = 3mm
• The Fix is moulded from 30% glass filled nylon PA6
• The Button is moulded from 30% glass filled nylon PA6

Click here to download DXF CAD drawings

Download instructions for how to use Button-fix Type 1 Non-Bonded
